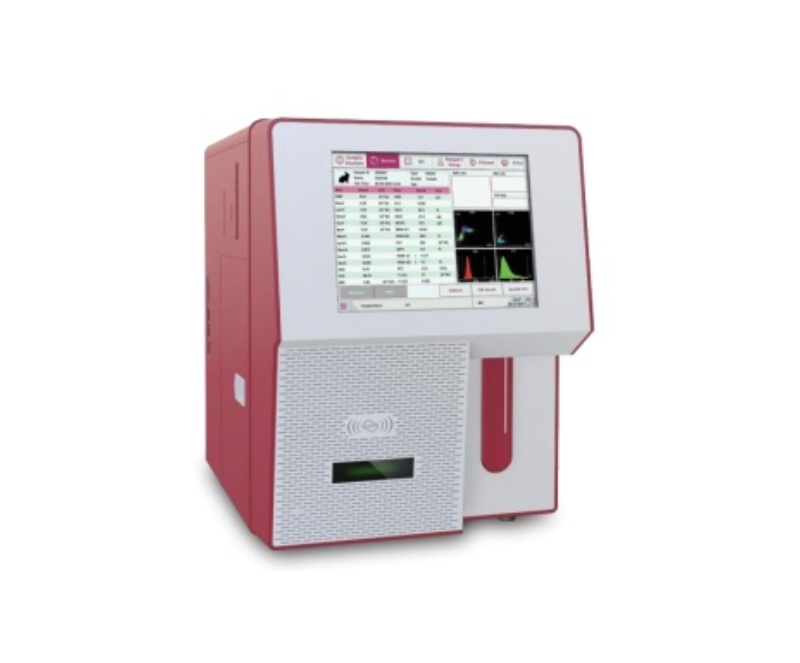

PRODUCT DETAILS
Ideal choice for 5-part hemanalysis
 Compact Yet Powerful |  Real 5-Part Hemanalysis |  All-in-one Solution |

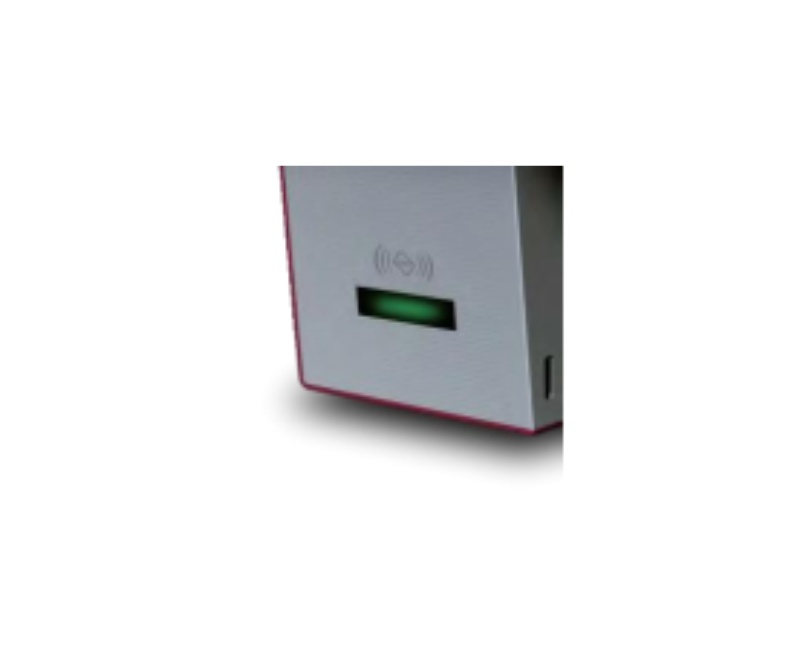

| Support 19 species: Cat, Dog, Rabbit, Sheep, Goat, Cattle, Horse, Rat, Mouse, Llama, Deer, Musk deer, Monkey, Tiger, Dolphin, Pig, Camel, Ferret, Panda. 26 parameters + 4 scattergrams +2 histograms Small size: 430 x 350 x 435 mm | Advanced tri-angle laser scattering and flow cytometry Direct counting and differentiation for Basophil | Built-in printer Built-in barcode scanner (optional) Built-in card reade Built-in operation system |
 |  |  |

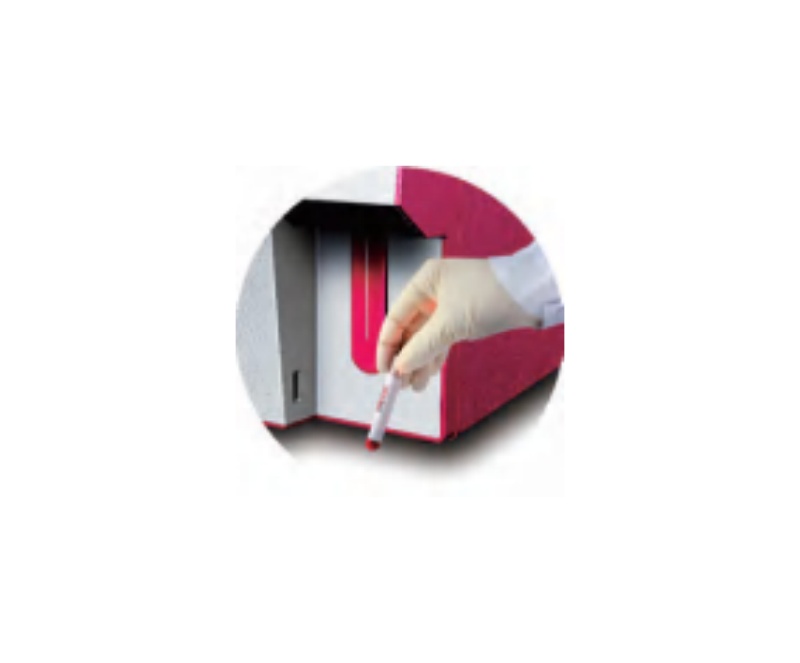

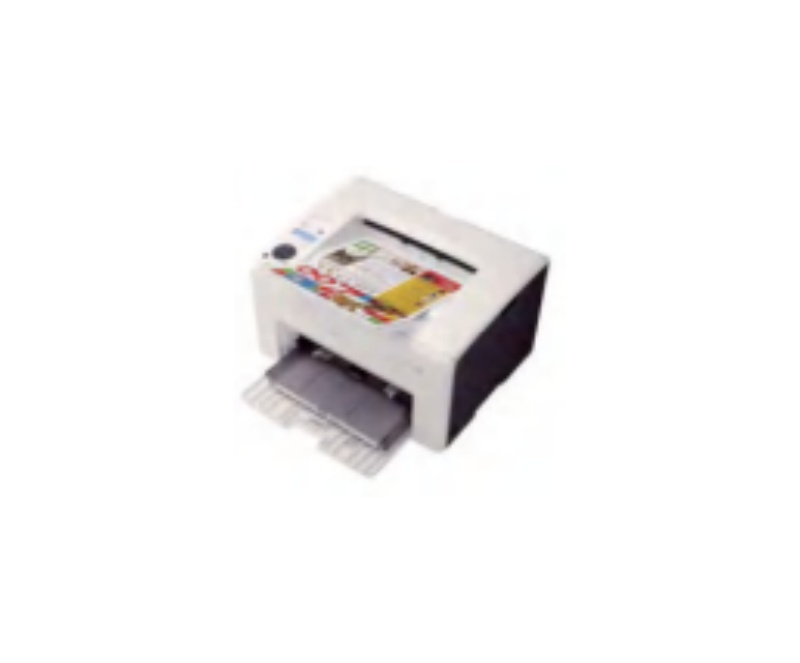

| Minimized injury for animal Sample volume: 20 μl | Color priting Supported by external printer | Built-in card reader Secure closed system |
Advanced Technology

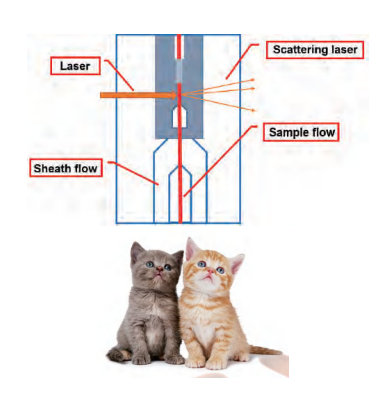

Tri-angle laser scattering and flow cytometry
• Blood cells pass through the center of the flow cell one by one at high speed.
• Tri-angle laser scattering contributes to more accurate counting.
• Dedicated channel for Baso differentiation.
 |  |  |  |
Proven technique for RBC, PLT and HGB
• Impedance and colorimetric
Reliable Performance
Parameters | Precision(CV) |
WBC | ≤3.0% (6.0-15.0)×10⁹/L |
RBC | ≤3.0% (3.5-10.0)×10¹²/L |
HGB | ≤2.0% (110.0-180.0g)/L |
MCV | ≤1.0% (60.0-95.0)fL |
PLT | ≤6.0% (150.0-500.0)× 10⁹/L |
Parameters | Linearity range |
WBC | (0-100.0)×10⁹/L |
RBC | (0-17.00)×10¹²/L |
HGB | (0-250)g/L |
PLT | (0-3000)×10⁹/L |
