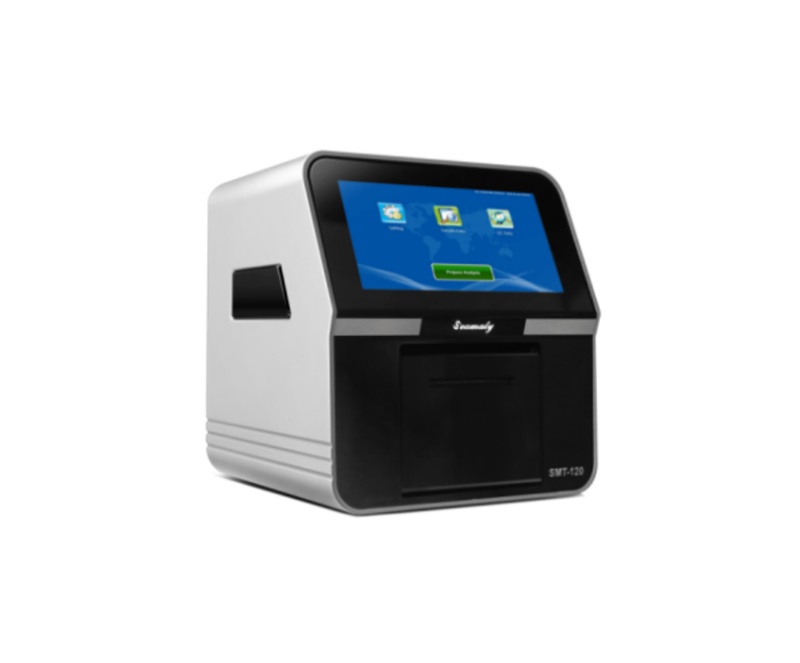

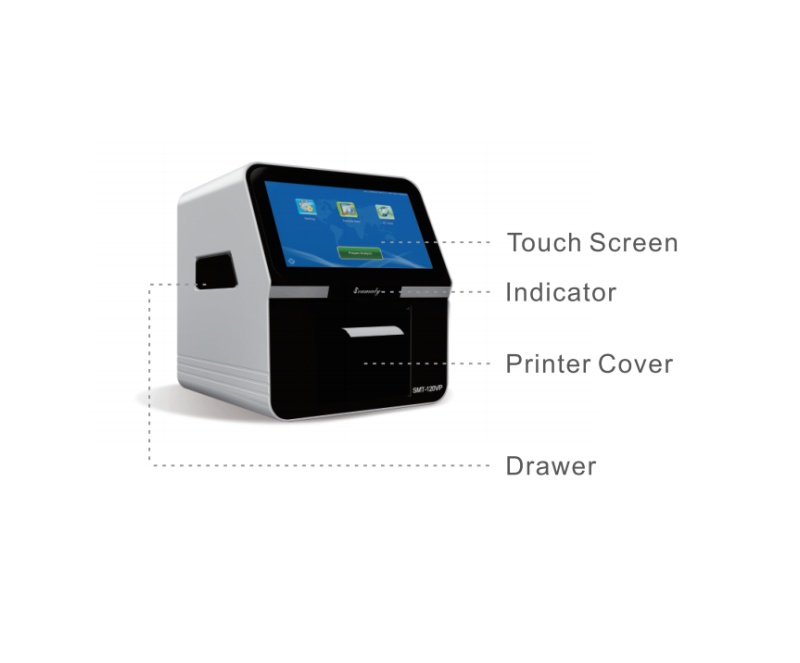

Automatic chemistry analyzer WML430A VET
Multifunctional Automatic Veterinary Chemistry Analyzer
WML430A VET realizes the miniaturization and automation of the analyzer by microfluidic technology.Built-in intelligent quality control system targets for an accurate and reliable test result. It is easy to operate with little space to be occupied. It is an ideal diagnostic tool to help veterinarians assess the health of animals and it has become a professional choice of thousands of veterinary hospitals and clinics.
PRODUCT DETAILS
 |  |  |
Small and portable Small size, weight only 4Kg. Small footprint and can be carried anywhere. | Easy to use Only need to add samples, it's easy to operate. No need to add diluent manually. | Little sample volume The sample volume is only 100μl. Easy to do test for small animals and exotic animals. |
 |  |  |
One analyzer for multiple uses Covers biochemistry, electrolyte, coagulation, feline and canine inflammation detection (c-CRP, f-SAA). | Consumable advantages Freeze-dried reagents with 15-month shelf-life. Original rotor microfluidic technology to avoid cross-contamination.Autonomous ultrasonic welding, the quality is more guaranteed. | Minimal maintenance Imported key parts, no internal pumps, valves and other vulnerable parts. 25-month warranty. |
SPECIFICATION
Sample Volume | 100μl | Weight | 4Kg |
Sample Type | Anti-coagulated whole blood, serum,plasma | Testing Principle | Absorption spectroscopy,transmission turbidimetry |
Bar Code | Two-dimensional bar code | Printer | Built-in thermal printer |
Storage | MAX 500.000 results | QC& Calibrate | Real time full-auto finish |
Temperature | 37±0.3℃ | Order Code | A00121VETENO |
Resolution | 0.001 Abs | Absorbance | 0-3.0Abs |

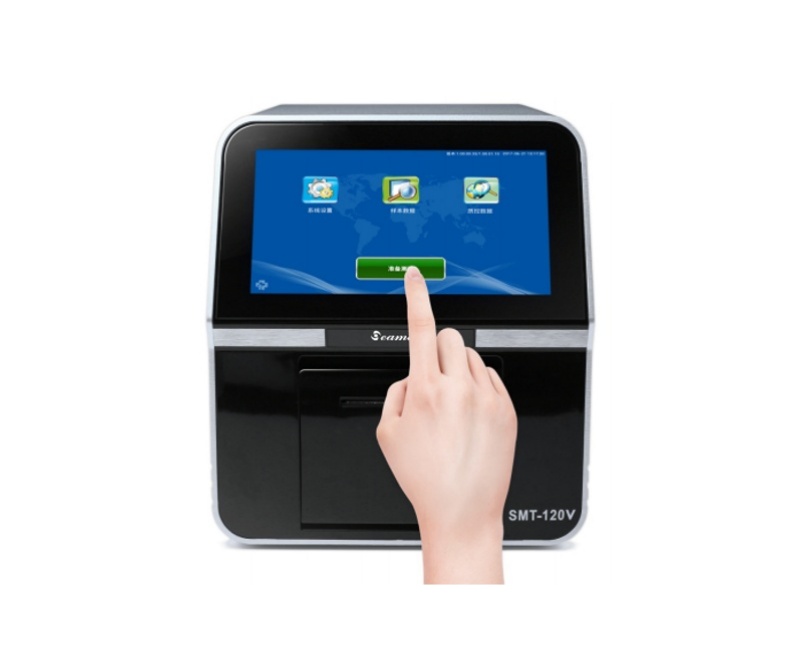

Testing Method | End point, kinetic, fixed time and turbidimetry | Display | Android 7.0 inch 800*480,multi-point capacitive touch screen |

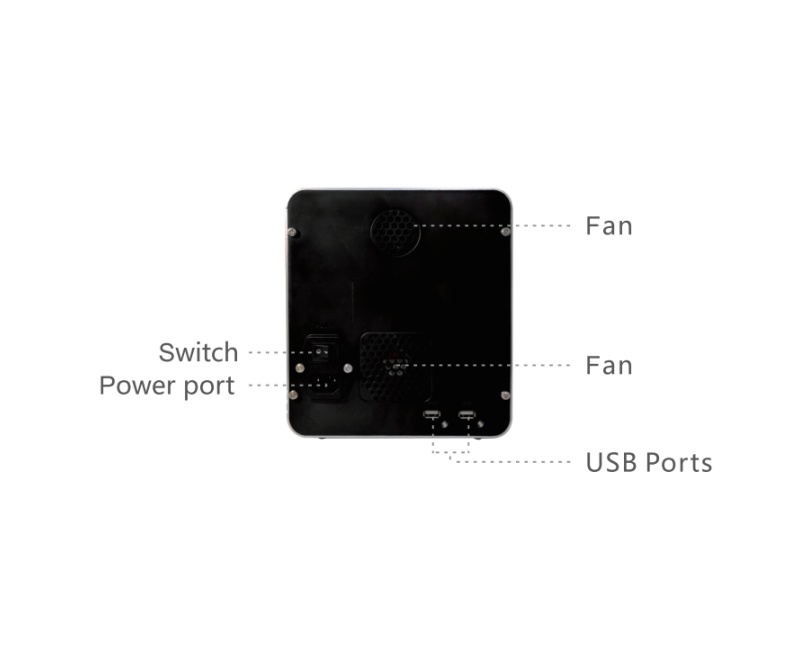

Operational Environment | Temperature:10-30℃,Humidity:<85% | Connectors | 2 USB ports |
Light Source | 12V/20W, halogen tungsten lamp's life span is over 2500 hours | Language | English, Italian, Portuguese,Russian,Spanish, Deutsch, French, Thai |
Voltage | AC100-240V,50/60Hz | Rated Power | 100VA |
EASY 3-STEPS OPERATION
Diution,centrifugation,quality control and test result printing carry out automatically as steps during the
sample analysis process.

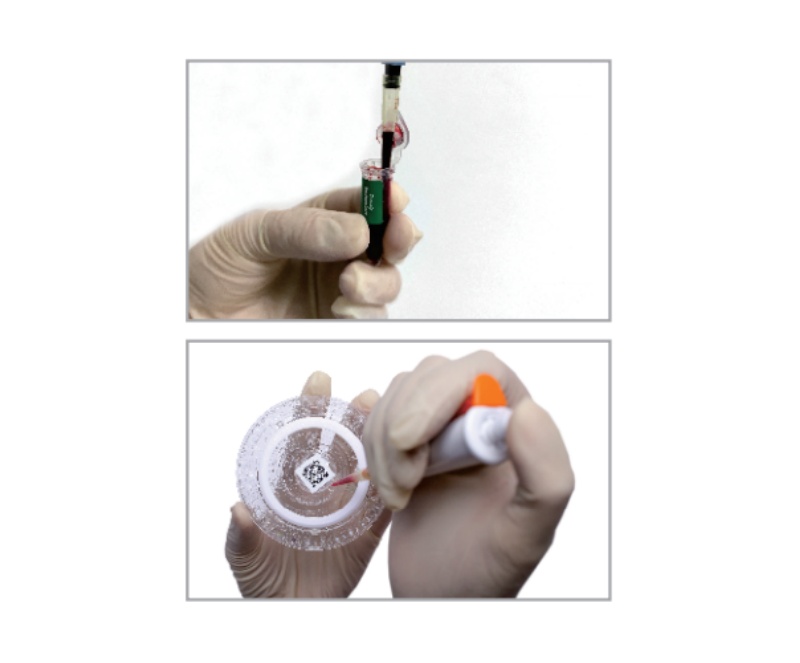

|  | Add Sample( 100μl blood ) The whole blood sample does not require pre-treatment. A full test is available with only 100μl of whole blood, serum or plasma. |

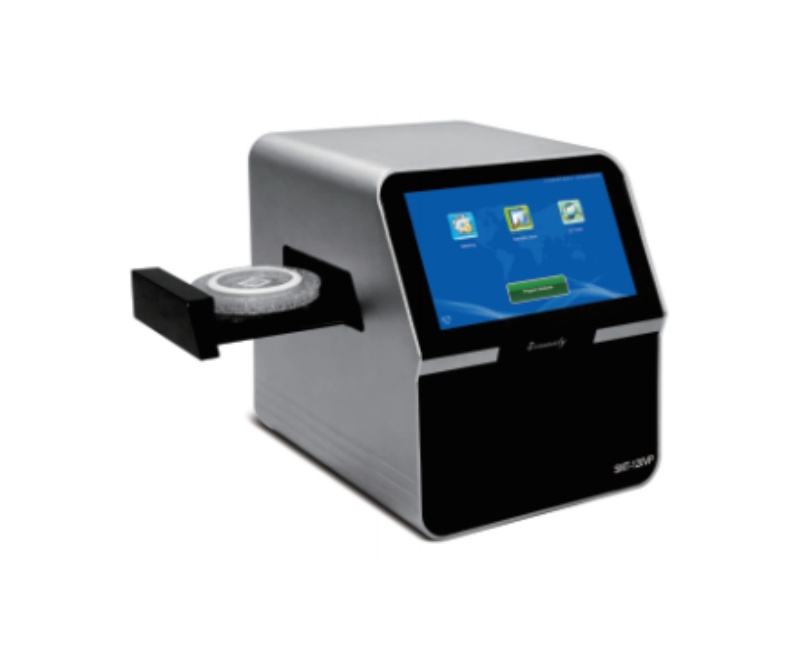

 |  | Insert Rotor(12 minutes to result) Key moving parts are original and sourced from US manufacturer. All fluids are self-contained within the rotor, eliminating the need for internal pumps, valves and other vulnerable parts. |

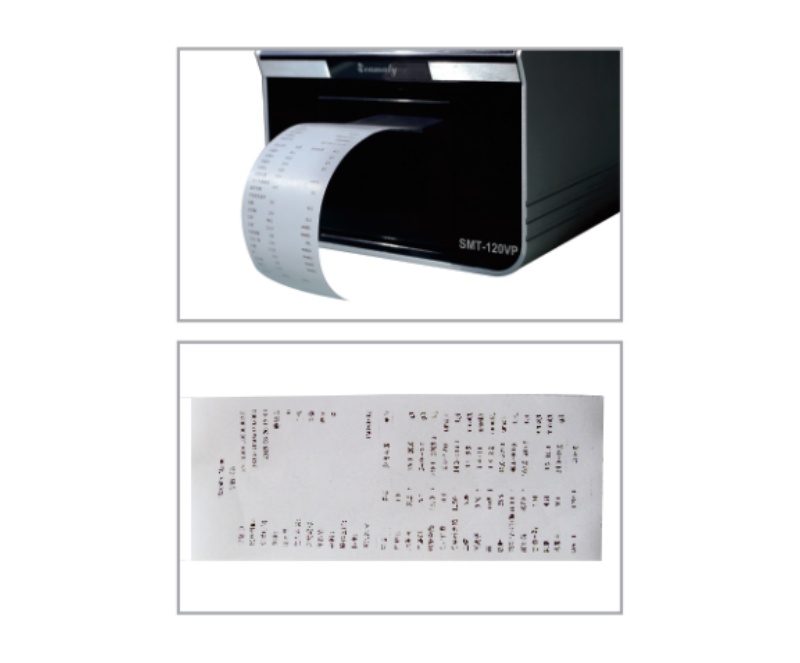

 |  | Read Result (immediately) Use the photoelectric colorimetric principle to eliminate random error and cross contamination. Test report will be printed automatically. |

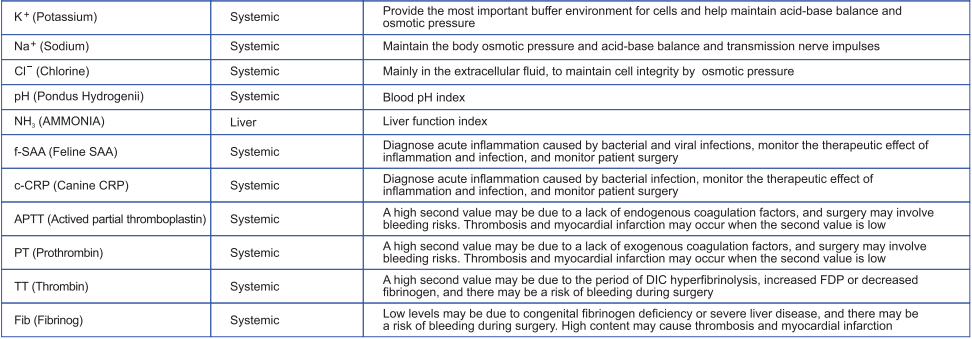

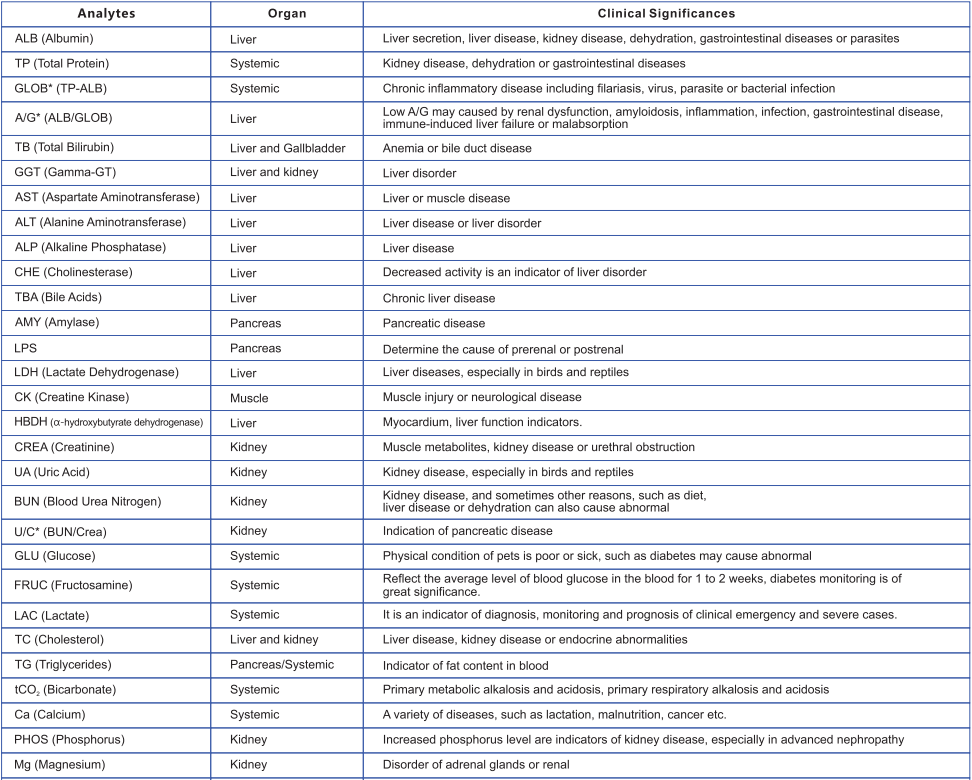

Analytes and Clinical Significance
