PRODUCT DETAILS
Animal species
 |  |  |  |  |  |  |
Dog | Cat | Pig | Horse | Cattle | Sheep | Rabbit |
 |  |  |
Up to 100 tests per hour Fast start-up and shut-down process User-friendly software Removable reagent disk Auto cuvette washing station... | Small footprint on the desk Big reagent and sample compartment Built-in computer with touch screen Built-in thermal printer Complete solution with reagents Powerful data transmission with USB, Ethernet ... | |
 |  | |
| Minimum reaction volume 150 μL Reusable cuvettes Few consumables Low water consumption Halogen lamp with long lifespan Optional reagent closed system... | Reagent inventory monitoring Accurate probe pipetting technique Auto probe washing reduces carry-over Simultaneous dual-wavelength measuring... |
Full functionality,
highly integrated microlaboratory

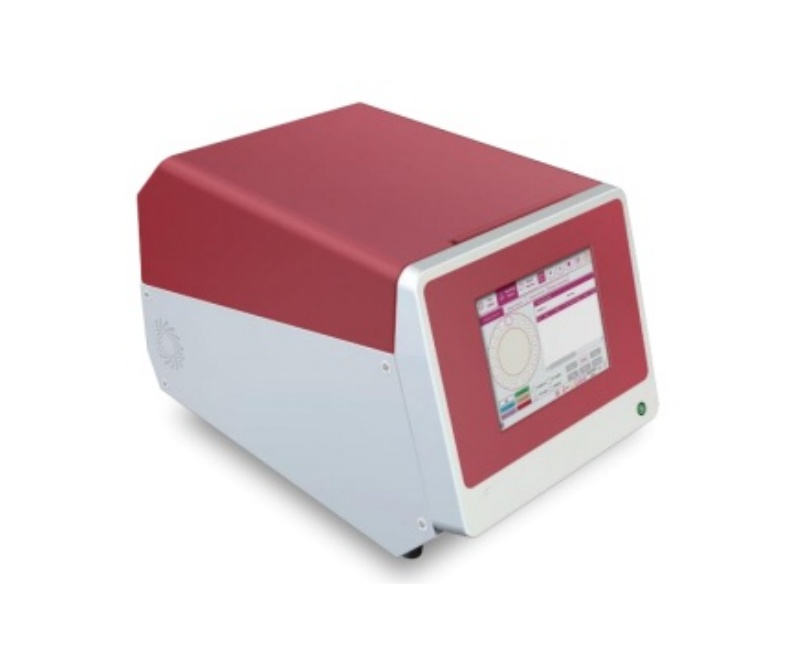

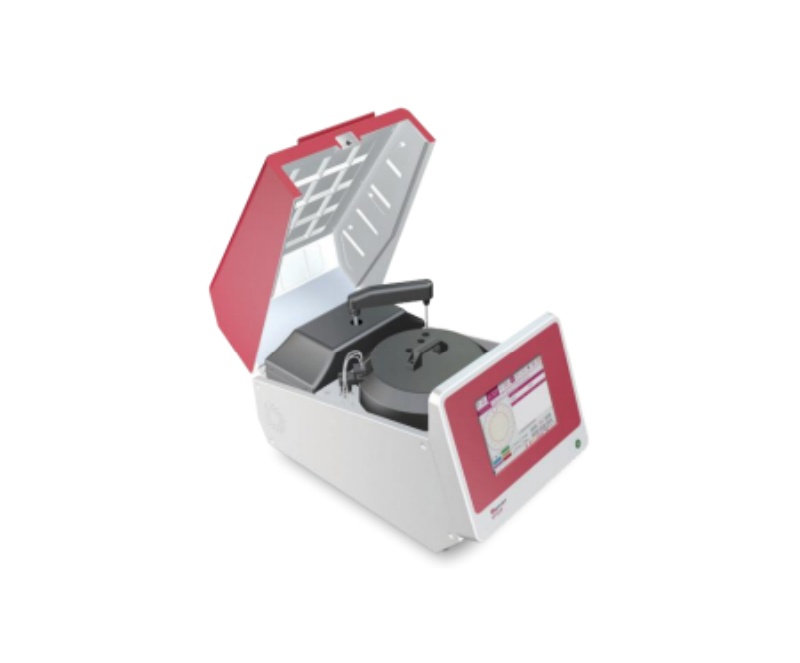

WML-VP100 is the smallest and most integrated chemistry analyzer, which is perfect for
low-volume laboratories.
It optimizes the use of space in the laboratory by providing full functionality in small space.
Standardized operation, which is consistent with larger analyzers, eliminates manual errors and makes test results more reliable.
The robust system prolongs uptime and increases productivity of lab.
The easy automated testing improves the workflow and mitigates manual labour, together with its cost-effectiveness, making it possilble to bring benefits of automatic chemistry to all laboratories.
Specifications
● System function | ● Calibration and control | ● Reagent/Sample handling |
General: Benchtop, automatic, discrete, random access, STAT sample priority Throughput: Up to 100 tests per hour Principle: Colorimetry and turbidimetry Methodology: End-point, fixed-time, kinetic,etc. Programming: Open or closed system on demand | Calibration: K-factor, Linear, Spline, Logit-Log 4P, Logit-Log 5P, Exponential, Polynomial Control: Westgard multi-rule, Cumulative sumcheck, Twin plot, L-J Chart | Reagent/Sample tray: 40 reagent positions 20 sample positions Reagent volume: 10-300 μL, step by 1 μL Sample volume:1-40 μL, step by 0.1 μL Reagent/Sample probe: Liquid level detection, vertical & horizontal collision detection and reagent inventory monitoring Probe cleaning: Auto interior and exterior wash |
● Operation system | ● Reaction system | ● Working condition |
Computer: Built-in operation system - Linux Screen: 10.4 inch color touch screen Data storage: 100,000 results Printer: Built-in and external printer Others: Soft keyboard Compatible with keyboard and mouse Interface: Ethernet, USB, etc. | Reaction tray: 81 reusable cuvettes, auto cuvette washing station Reaction volume: 150-750 μL Reaction temperature: 37 ± 0.1°C Heating method: Solid heating | Power supply: AC 100~240V, 50/60Hz, ≤ 300VA Temperature: 10-30°C Humidity: ≤85% Dimension: 384mm*640mm*410mm (Width*Depth*Height) Weight: 30 Kg Water consumption: ≤ 1 L/H |
● Optical system Whole blood, serum, plasma | ||
Light source: Halogen tungsten lamp Photometer: Maintenance-free photometer,rear spectrophotometry by filters Wavelength: 8 wavelengths: 340, 405, 450, 510, 546, 578, 630, 660nm (precision ±2nm) Absorbance: 0-4.5 Abs | ||
