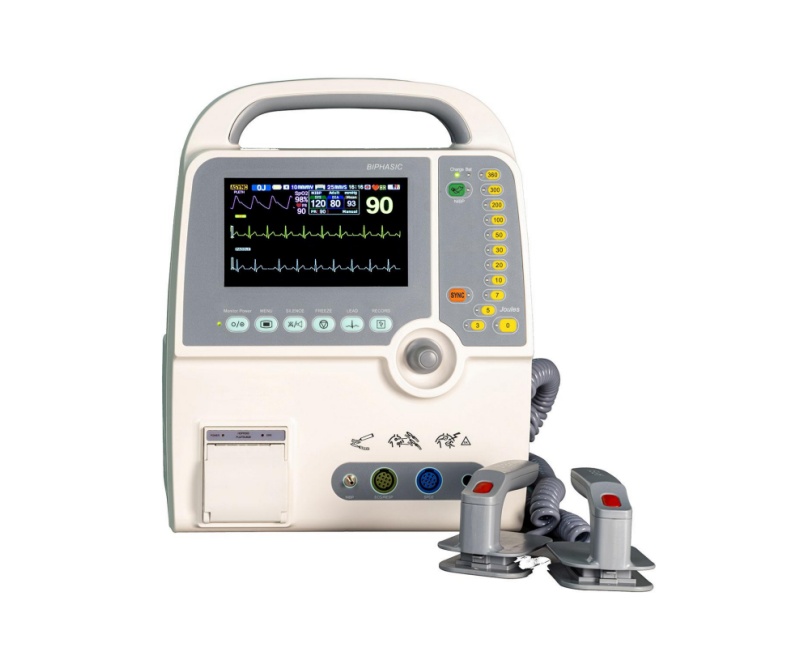

WMV500C Biphasic Defibrillator Monitor

Specification

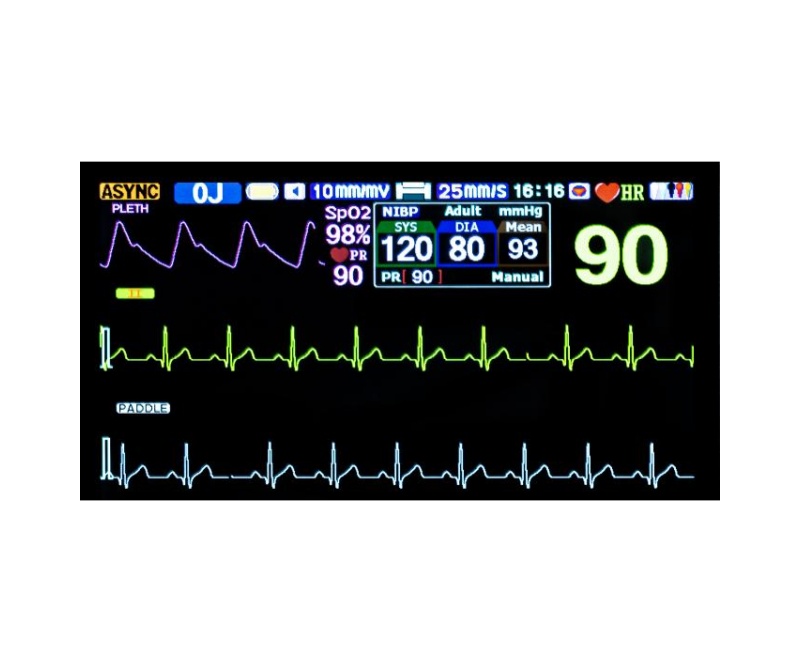

 Display

 Screen Type:High-resolution display, TFT colour display

 Screen Size: 7 inches (17.7cm) diagonally

 Sweep Speed: 12.5/25/50mm/sec

 Information: Heart Rate,Nibp,Spo2,Temp, Delivered Energy

 Resolution:800X480

 ECG

 Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.

 Lead Selection: Displayed on monitor, paddles, I, II, III,AVR, AVL, AVF, V.

 ECG Size: 2.5,5, 10, 20, 30 mm/mV display on monitor.

 Heart Rate: 20-350BPM.

 Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation

 NIBP

 Working Mode: Manual/Automatic

 Method: Automatic oscillation

 Cuff type: standard Adult; optional Pediatric/Neonatal

 Temp.

 Measurement range 0~50℃

 Resolution 0.1℃

 Pulse Oximetry（Spo2）

 Display ：Spo2 value, waveform, Pulse

 Range：0~99%for adult, pediatric and neonatal patients

 Probe ：Standard adult finger clip

 Optional pediatric Y-type clip and neonatal wrap

 Pulse Oximetry（Spo2）

 Display ：Spo2 value, waveform, Pulse

 Range：0~99%for adult, pediatric and neonatal patients

 Probe ：Standard adult finger clip

 Optional pediatric Y-type clip and neonatal wrap

 Defibrillator

 Waveform: Biphasic

 Defibrillator type: Manual External Synchronous/Asynchronous Defibrillation.

 Charge Time: Less than 10 seconds to 360 Joules

 Energy Display: Monitor display indicates both selected and delivered energy.

 Charge Prompt Type: Voice and visual prompts.

 Energy Selection: Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules

 Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric paddles integrated)

 Battery Description

 Standard Type: Li-ion battery Li1104c 11.1Vdc 4000mAh X2

 Standard Capacity: Up to 10 hours ECG monitoring or 60 full-energy discharges.

 Low Battery Indicator: Flashing low battery icon on display and Bat.Indicator on the panel of defi-monitor be on

 Recharge Rate: 80% in 3 hours. 100% in 5 hours.

 Built-in Recorder

 Paper: 50mm thermal.

 Printing Method: High-resolution, thermal print head.

 Record date, time ,sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform

 Print mode  HR exceed limits alarm recording  Auto timed recording  Real-Time Recording  Defibrillation discharge trigger recording

 Power

 AC-DC dual-use: Use the batteries,AC100V~240V,50/60 Hz.

 Vehicle Voltage(Option): DC 12V

 Main unit:

 Portable

 Maximum power 600W

 Dimensions:L320xW205xH410

 Weight:7.5kg

 AED (Optional)

 Voice prompts and screen prompts.

 Energy Programmable Sequence: 200,300,360 Joules; 150,150,200 Joules; 50, 75, 100 Joules; 30, 30, 50 Joules;

 Discharge Control: Control on device front panel.
