WMV-PJICU-02 ANIMAL MONITORING CABIN
Transcendent ICU animal inten-sive care unit Core orientation of technology: excellence, innovation,foresight, truth-seeking, core concept of nursing: integrity,care, professionalism, efficiency
PRODUCT DETAILS
Beyond Enhancements for Veterinary Specialists
Total Precision Medical Care Solution
This machine is suitable for sick, critically ill, sick and weak animals temperature
resuscitation, infusion, oxygen, blue light nebulization treatment, rescue, hospital
observation, etc. lt can also be used as a sterile, constant temperature culture of
young pets greatly improve the cure rate of small animals, enhance the image of
the hospital and easily increase revenue.
READITAND KEEP IT SAFE FOR FUTURE USE!
Product main technical parameters list
Product Name | Aerobic full-featured beyond animal medical monitoring | Monitors | 8.4 Type W171XH128mm |
Model | PJICU-02 | Touch Screen | Pointer membrane resistance type |

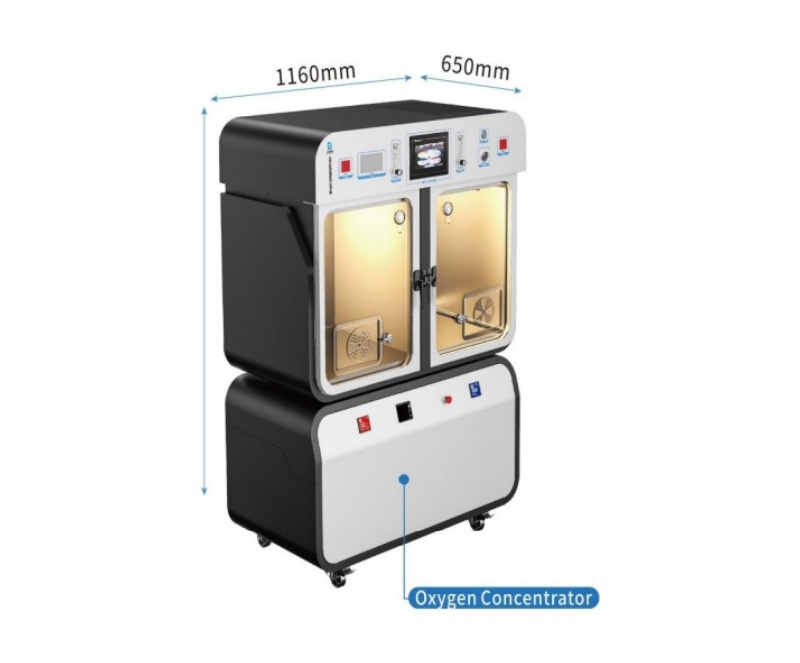

Dimension | 1160mmX650mmX1670mm (Length XWidth XHeight) | Maximum power consumption | 1.6ku |
Weight | Approx.236KG | Average power consumption | 0.8KW |
Power supply | AC100V/220V 50/60HZ(With grounding) | Power failure guarantee | Emergency ventilation hatch with programmed controls |
Air Conditioning method | Separate type split cooling/PTC heating | Negativeion Medical purification function | (7.2X10PCS/cm3X4) High concentration of negative ions |
Greening air function | Ultraviolet germicidal lamp; High concentration Negative ion air purification | Standard Accessories | Infusion rack |
Conditions of use | -10~40℃ environment (indoor) | Micro Printer | Intelligent Automatic Timer Printing System |
Set temperature | 15~38°C temperature control precision earth 0.5C | Ultraviolet sterilization | UVC band 253nm High efficiency UVC sterilization system |
Set oxygen concentration | 21~60%,control accuracy is 1% | Blue Light Medical System | Blue 415nm LED |
Carbon dioxide concentration Monitoring, removal | 300-5000PPM,error 10PPM, Built-in medical CO2 efficient purifier and automatic CO2 removal device | Medical Nebulizer | Maximum atomization rate=0.2ml/min， Fog particle(0_5-2um) Noise≤40dB(A) |
Alerts Warning | 02 concentration abnormality, temperature abnormality, Sensor abnormality, CO2 concentration abnormality Emergency hatch switch abnormality,etc. | LED lighting panels | Two-way light control: warm light Divided into ten levels of adjustable intensity control,medical Medical examination special cold light |
Dehumidification index | Automatic dehumidification system, standard humidity control at 40%, the actual humidity control in<50%. Divided into High/Middle/Low three levels of adjustment High:45%~50% Middle:40%-44% Low:30%~39% | Fan control (air exchange volume adjustment) | LOW/MIDDLE/HIGH Low, medium and high Three-step input speed adjustment Oxygen input adjustment one-one low Temperature adjustment one - one high Emergency ventilation start one-one high gear UV sterilization one-one medium CO2 concentration is too high one-one high grade |
Five major advantages
Cutting-edge technology that stands the test of time
1. Inner wall wrapped 3D balanced circulation temperature control system
2.High-performance aerobic chamber technology realization
3. High concentration of medical grade negative ion air purification function technology realization
4.High efficiency sterilization system
5. The original three effects in one treatment lighting system, all-round observation and treatment of sick animals
High workmanship standards
Safety, comfort and attention to detail
Core equipment 80% of the probe with low energy consumption imported from Germany
full silent accessories, the overall noise decibel <35db|
Co concentration since the determination of protection and adjustment device, according
to the changes in the concentration of CO in the cabin automatically open the ventilation
system; power failure emergency vents automatically open the protection system, safe
treatment environment to ensure that the last line of defense to guard animal life.

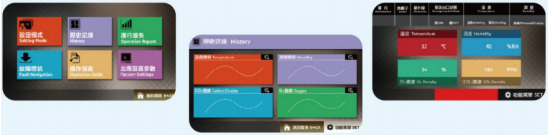

Thoughtfully designed full graphical user interface
8.4-inch multi-touch color screen with full microcomputer operating system
Realize complex settings with simple operation
Instant access to historical data analysis reports for precise correction of operating conditions
Image visualization of maintenance methods
Automatic fault location and image navigation processing
Photo and image guidance, even for first-time users
Maintenance
Post-use care
1、Please use a cloth or soft sponge with neutral detergent to clean the cabin after each use.
2、Start the UV sterilization,each sterilization time please keep more than 3 minutes to thoroughly sterilize.
3、Important note: Please turn off the power after each use and observe whether the emergen- cy vent is
automatically opened, if found not opened, please try to wipe the dust at the vent with a dry soft cloth, and then re-switch
the unit on. Then switch the device on and off again to check. If there is a problem, please call the after-sales service to troubleshoot the problem in time.
Regular maintenance
During normal use, the equipment isrecommended to be serviced every two months
1、Wipe the exterior of the equipment with a soft cloth. lf the stain is serious, wipe it with warm water or a cloth containing a neutral detergent.
2、Use a cloth with neutral detergent or a soft sponge to clean the inside of the equipment compartment.
3、There is a filtration system on the upper side of the main body of the equipment,remove it with a hoover to remove the adhering stains, if the stains are serious, clean with diluted neutral detergent water and then shade dry.
4、There is an emergency vent device on the back of the main body of the equipment, please remove the filter cover
and use a hoover to remove the adhering stains, if the stains are serious, use diluted neutral detergent water to clean
and then dry in the shade.
5、Gently wipe the touch screen with a soft cloth or sponge to ensure the screen is clear.
