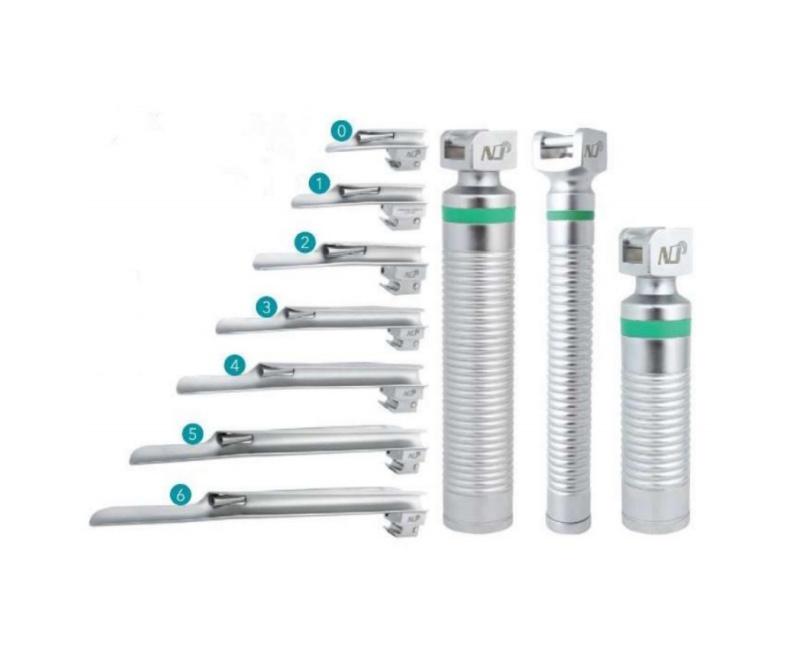

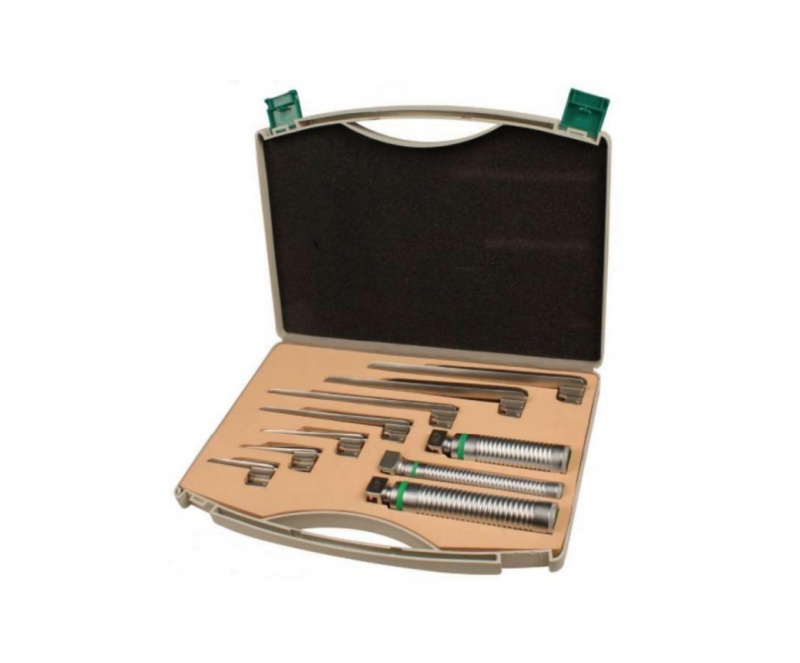

WMV-NJ800G Fiber Optic Laryngoscope Miller (Set of 7 Blades)
High Performance Integrated Fiber Optic Bundles
Provides Best light quality, No Electrical Contacts in the Blade.
PRODUCT DETAILS
●Superior Material and Surface Treatment
●Designed to be Sterilized using steam, Seris,Steered or EO
●Epoxy Sealed Channel Heat Resistant up to 392° F
●Patented Integrated Design
●Rain Forced ball lock system
●Integrated Design minimizes bodily Fluid Entrapments
●Extended Life time insures lowest cost per use
●virtually maintenance face,Rain forced tip
| Code Fig Working Lenght (mm) | ||
| Blade Size | Overall Length | Length Inside Base to Tip |
| 0 | 89 mm | 63 mm |
| 1 | 108 mm | 82 mm |
| 2 | 126 mm | 101 mm |
| 3 | 160 mm | 135 mm |
| 4 | 160 mm | 135 mm |
| 5 | 160 mm | 135 mm |
| 6 | 160 mm | 135 mm |
Chrome Plated Brass Fiberoptic Laryngoscopes handle compatible with all green system fiber optic blades.
Fully compliant with ISO 7376 Green Specifications.

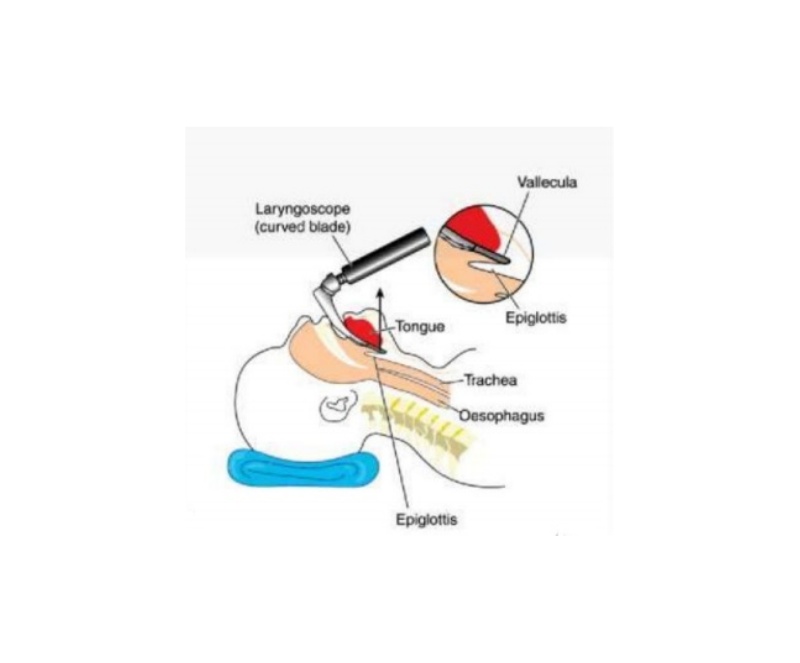

LED Technology to Provide an electro luminescence, which is a Strong white or yellow light, allowing clinicians to have a clearer view of the larynx and a true view of tissue visibility or lesions.
