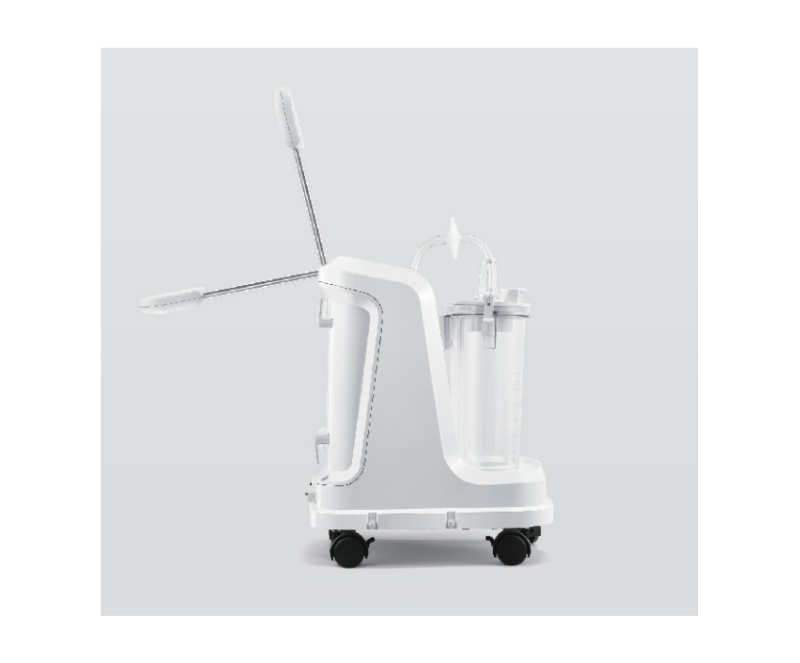

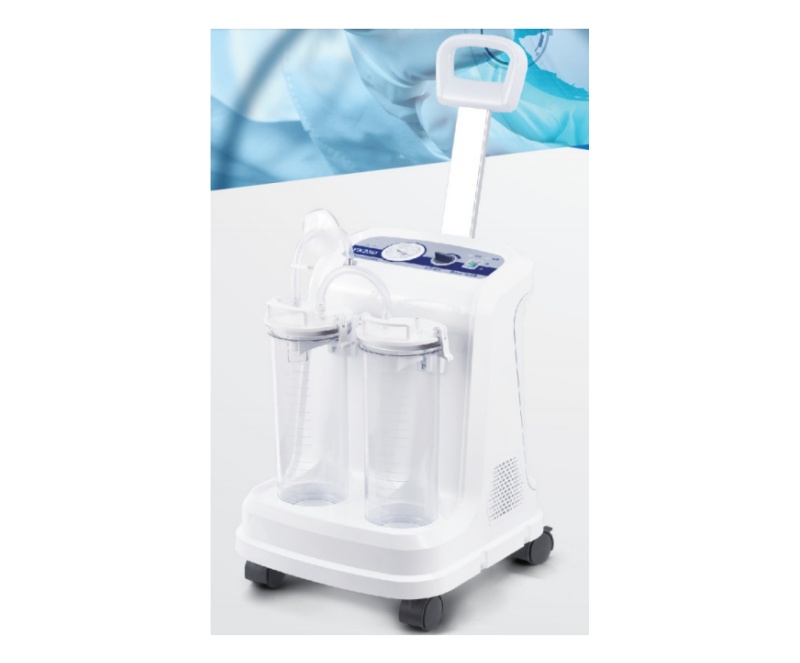

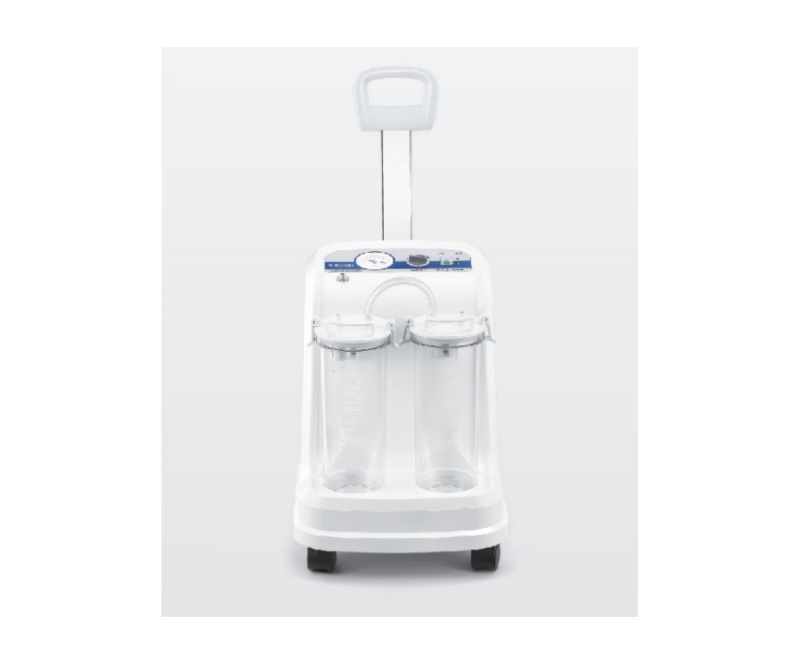

WMV-YX23D Electric Suction Apparatus
Model WMV-YX23D Electric Suction Apparatus, intended for extracting various mucus such as purulence, blood and phlegm from body cavity or wound and used in hospitals or center of social medical service, is a mobile suction unit with a high flow, high vacuum and a novel style.It can satisfy most demands in operating rooms.
PRODUCT DETAILS
Product overview
1. An oil-less vacuum pump, double piston cylinder with a high flow,high vacuum, needs maintenance free.
2. Move smoothly and freely with a swing-type pull handle.
3. Large-bore and large capacity bottles with stopper having sealing ring, easy to clean and to open or close.
4. A hydrophobic Filter provides an effective barrier against contamination.
5. The over flow protection devioe is intended to prevent liquid or solid particles from entering the intermediate tubing and pump.
6. The level of vacuum required in clinic can be controlled by adjusting the vacuum regulator, and a synchronized indication on the vacuum meter.
7. A brand new plastic shell, stability and durability, low noise, safe and reliable to operate.
8. The foot switch adopts a pneumatic control structure, ensuring safe and reliable operation.
Specifcation parameter
Max vacuum: | >0.09MPa(680mmHg) |
Vacuum range: | 0.02MPa~Max. vacuum |
Flow rate: | ≥32L/min |
Noise: | ≤65 dB(A) |
Bottle capacity: | 2000 mLx2 (PC) |
Power supply: | 220V~ 50Hz |
Power input | 180 VA |
Dimension: | 370mmx440mmx510mm |
Package Dimension: | 465 mmx535 mmx575mm |
G.W./N.W.: | 15kg/12.5kg |
