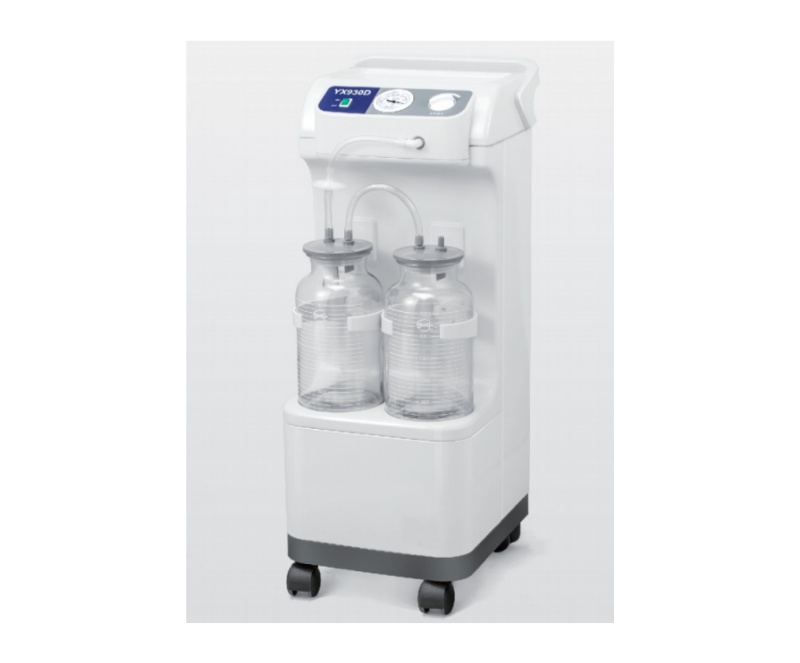

WMV-YX930D Electric Suction Apparatus
Model WMV-YX930D Electric Suction Apparatus is a beauty, high vacuum, high flow and transportable medical suction unit. It is able to absorb varied mucus rapidly from body cavity or wound, to satisfy
most demands in operating rooms, wards and so on.
PRODUCT DETAILS
Product overview
1. Maintenance free, oil-less pump, and high flow rate with less pollution.
2. Large-diameter storage bottle, stopper with sealing ring, easy to open, fasten down and clean.
3. Overflow protection device prevents liquid from entering into the inner pipe and pump.
4. Transparent non-toxic PVC hoses, easy for observation.
5. Air flter protects pump from being polluted.
6. Hand switch and foot switch installed in parallel, can be selected at will.
7. Work stably and durably, low noise, long service life.
Specification parameter
Max Vacuum: | ≥0.09MPa(680mmHg) |
Adjustable vacuum range: | 0.02~0.09MPa(150~680mmHg) |
Flow rate: | ≥40L/min |
Noise: | ≤60dB (A) |
Storage bottles: | 2500mlx2(glass) (the two or one of them can be changed to 2L or 3L PC bottle) |
Input: | 250VA |
Power supply: | AC220V 50Hz |
Dimension: | 320mmx360mmx830mm |
Package Dimension: | 465mmx425mmx935mm |
G.W./N.W.: | 22.5 kg/20kg |
