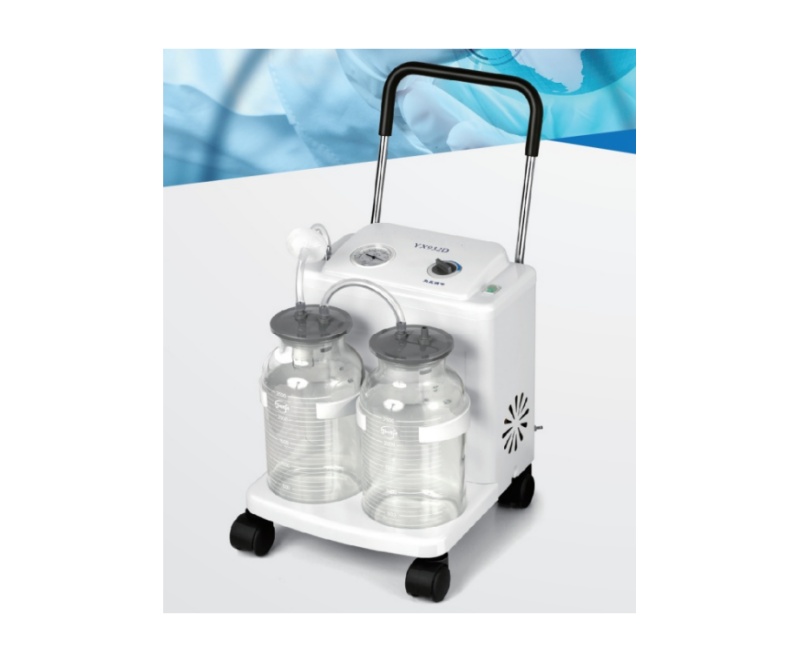

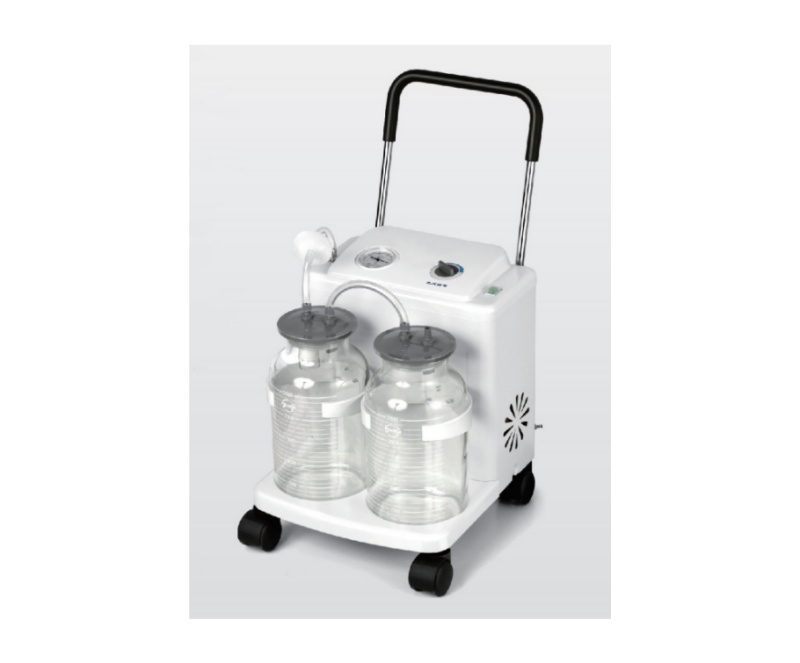

WMV-YX932D Electric Suction Apparatus
Model WMV-YX932D Electric Suction Apparatus, intended for extracting various mucus such as purulence, blood and phlegm from body cavity or wound and used in hospitals or center of social medical service, is a mobile suction unit with a high flow, high vacuum and a novel style. It can satisfy most demands in operating rooms.
PRODUCT DETAILS
Product overview
1. An oil-less vacuum pump, double piston cylinder with a high flow, high vacuum, needs maintenance free.
2. Move smoothly and freely with a swing-type pull handle; the aocessory-case for placing foot-switch and power supply wire makes it convenient for movement or storage.
3. Large-bore and large capacity bottles with stopper having sealing ring, easy to clean and to open or close.
4. The overflow protection device is intended to prevent liquid or solid particles from entering the intermediate tubing and pump.
5. Transparent non-toxic PVC hoses and unique connections are easy to observe and link.
6. The level of vacuum required in clinic can be controlled by adjusting the regulator knob, and a synchronized indication on the vacuum meter.
7.Stability and durability, low noise, safe and reliable to operate.
Specifcation parameter
Max vacuum: | ≥0.09MPa(680mmHg) |
Adjustable vacuum range: | 0.02MPa~0.09MPa(150~680mmHg) |
Flow rate: | ≥32L/Min |
Noise: | ≤60dB (A) |
Storage bottles: | 2500mLx2(glass) (the two or one of them can be changed to2L PC bottle) |
Power supply: | AC220V 50Hz |
Input: | 150VA |
Dimension: | 370mmx310mmx390mm |
Package Dimension: | 400mmx380mmx470mm |
G.W./N.W.: | 14kg/12kg |
